LM-MX41 |
|

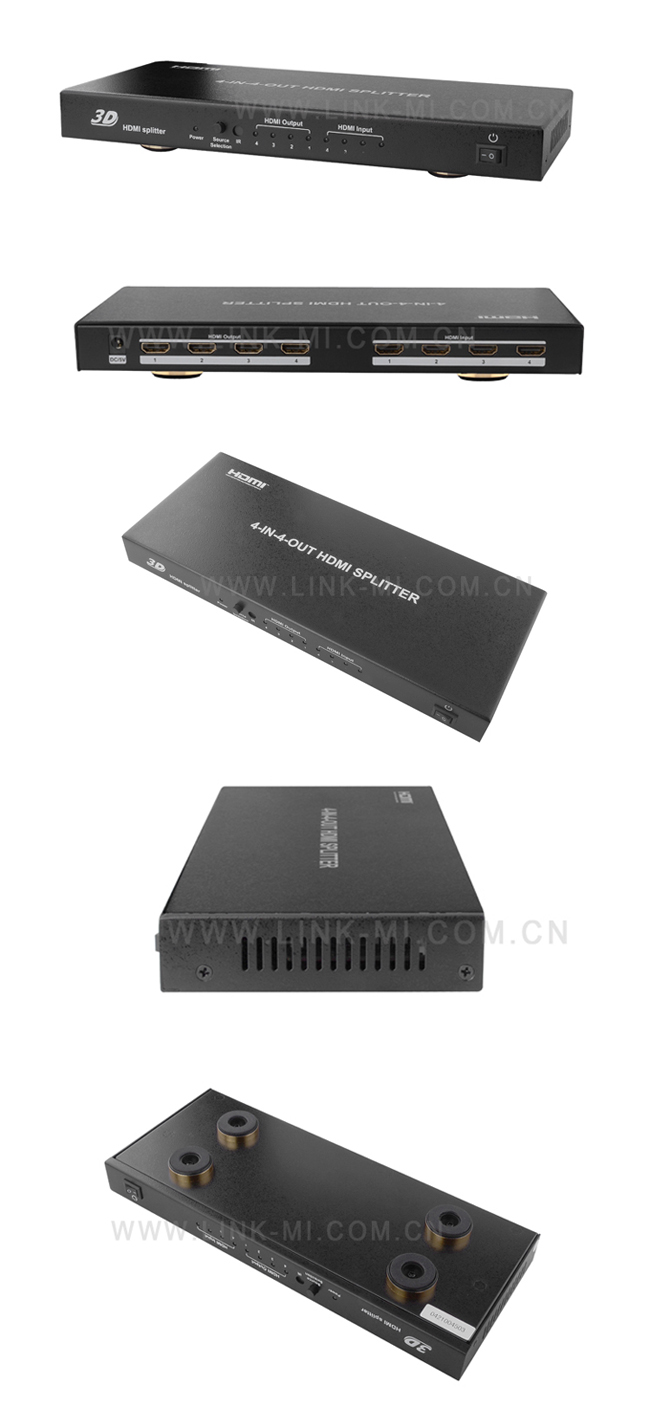

| LINK-MI LM-MX41 4 In 4 Out HDMI Splitter 3D Video |
| |
Introduction:
1.Support 3D video format. 2.4 HDMI inputs and 4 HDMI outputs.3.Select one of 4 different HDMI Signal input sources and switch to 4 HDMI display simultaneously.4.Manual or with remote controller to select input signals.5.Supports High Definition Resolutions : 1080p @ 60HZ, 720p/1080i @ 120Hz.6.Supports Digital Audio Format, such as High Definition Audio support: Dolby True HD, and DTS-HD Master Audio.7.DC 5V Power. |
|
|
| |
|
|
|
Specification
|
Brand |
LINK-MI |
|
Model No. |
LM-MX41 |
|
Material |
Metal |
|
Color |
Black |
|
Interface |
HDMI |
|
Application |
Distribute 4 HDMI Input to 4 HDMI Output |
|
Operating Temperature Range |
-5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit ) |
|
Operating Humidity Range |
5 to 90%RH ( No Condensation ) |
|
Input Video Signal |
0.5 -1.0 Volts P-P |
|
Input DDC Signal |
5 Volts P-P ( TTL ) |
|
Data Transfer Speed Rate |
6.75Gbps ( Max. ) |
|
Video Format |
DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p 3D Video Supports |
|
Video Output |
HDMI + HDCP 1.1 |
|
Video Color Format |
xv-YCC/deep Color 36 bit |
|
Audio Format |
DTS-HD/True-HD/LPCM 7.1/AC3/DTS/DSD |
|
Power Consumption |
10 Watts ( Max. ) |
|
Dimension ( L*W*H ) |
270*110*27.5mm |
|
Net Weight |
840g |
Packing Contents
1.Main Unit. 4 In 4 Out HDMI Splitter
2. DC 5V 3A Power Supply
3. Operating Instructions
4. Infrared Remote Controller |
 |
|
|
|
|
